Workspace Crates

Perspt is organized as a fourteen-crate Rust workspace under the crates/ directory. The program separates user interaction, core execution, security policy, persistence, and domain specifications into distinct libraries.

Eight crates form the running executable program; three crates define the reusable platform SDK and its target domains; perspt-prompt-macros is the build-time compiler for the prompt section libraries; perspt-benchmark is an optional, manually run evaluation suite (feature-gated in perspt-cli, never part of normal validation); one meta-crate re-exports the libraries.

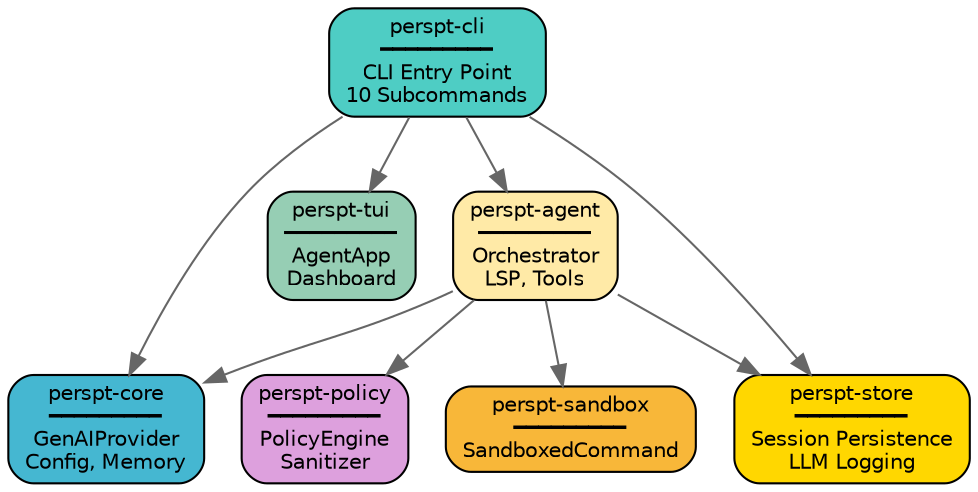

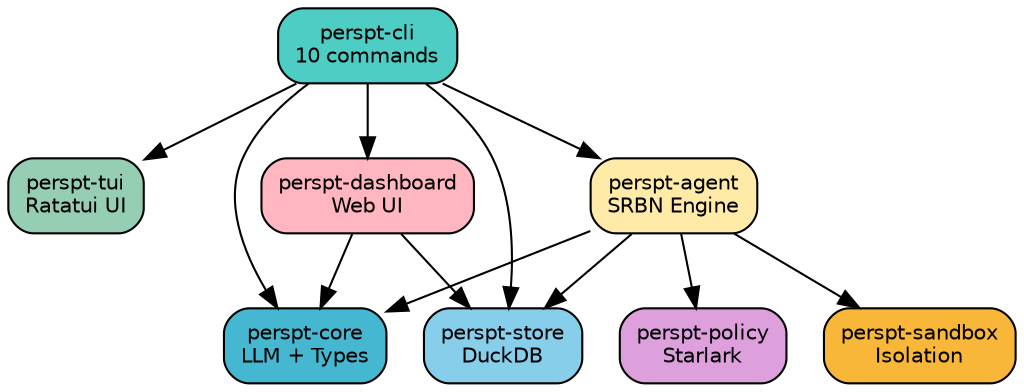

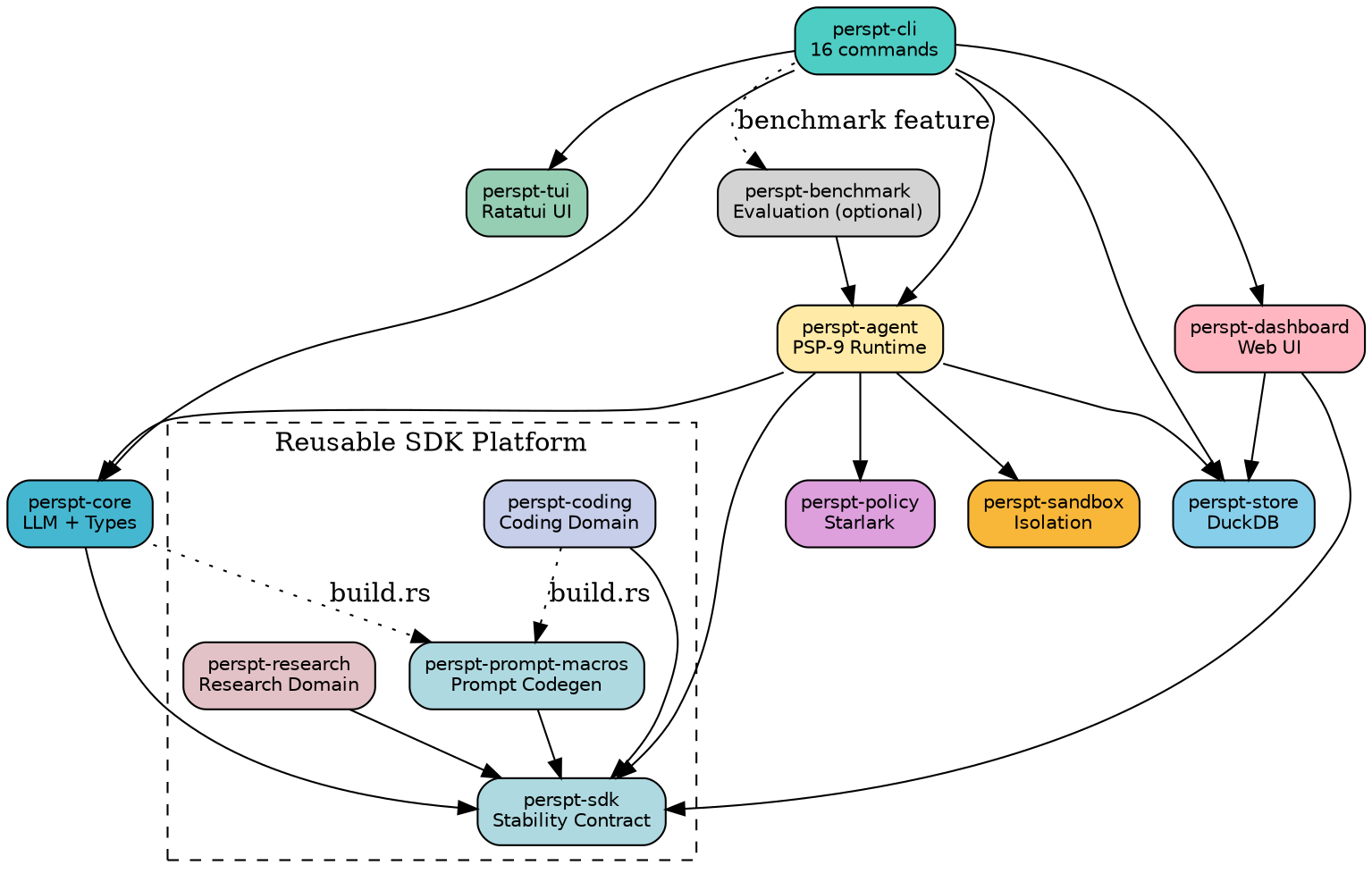

Crate Dependencies

Crate Summary

Crate	Operational Purpose	Primary Structural Types
perspt-cli	Parses command-line inputs and dispatches system commands.	Cli, Commands
perspt-core	Formulates shared data structures, configurations, and provider connections.	GenAIProvider, Config, TaskPlan, NodeClass, AgentEvent
perspt-agent	Executes the governed PSP-9 tool loop and work-graph runtime.	Psp9AgentRuntime, CandidateWorkspace, AgentTools, GenAiTransport
perspt-tui	Implements the terminal user interface for interactive review.	ChatApp, AgentApp, DiffViewer, ReviewModal
perspt-store	Manages the DuckDB persistence layer for session logs.	SessionStore, SessionRecord, Psp9LedgerRow
perspt-policy	Executes Starlark policies to validate proposed command structures.	PolicyEngine, sanitize_command
perspt-sandbox	Runs external commands inside isolated subprocess environments.	SandboxedCommand, CommandResult
perspt-dashboard	Implements a read-only browser-based monitoring engine.	AppState, Axum router, SSE stream
perspt-sdk	Defines domain-neutral SRBN stability contracts and gate models.	ResidualEvent, EnergyModel, AgentDomainPackage, ResidualCertificate
perspt-coding	Implements the coding-domain adapters, sensors, and mappers.	CodingDomain, LanguageId, CodingAdapterRegistry
perspt-research	Implements the research-domain adapter to demonstrate SDK reuse.	ResearchDomain
perspt-prompt-macros	Compiles prompt section files into typed sections at build time.	StageDecl, PromptBuildError
perspt-benchmark	Runs the optional, manually invoked PSP-10 evaluation ladder.	BenchmarkSuite, BenchmarkRunOptions

perspt-cli

The entry-point command-line utility. It parses command-line flags and subcommands using the clap library and dispatches execution control to corresponding subsystems in other workspace crates.

Key structural types include:

• Cli: The root structure declaring command-line configuration arguments.

• Commands: The enum representing the sixteen subcommands (plus a feature-gated seventeenth):

  • chat: Starts the interactive terminal chat mode (the default).

  • simple-chat: Simple CLI chat mode without the TUI.

  • agent: Runs the governed PSP-9 agent on a task.

  • init: Initializes project memory and Starlark policy rules.

  • config: Modifies runtime configuration values in config.toml.

  • ledger: Commands to query, inspect, or rollback Merkle ledger sessions.

  • status: Shows current agent status.

  • audit: Delayed audit labels and conformal activation.

  • providers: Prints the provider capability matrix.

  • replay: Deterministic, credential-free audit replay of a session.

  • abort: Aborts a PSP-9 session by revoking its authority epoch.

  • resume: Resumes a paused or crashed session.

  • dashboard: Launches the monitoring Axum server and opens the browser.

  • db: Inspects and repairs the local DuckDB store.

  • prompts: Inspects and maintains the compiled prompt section libraries.

  • context: Explains a session’s recorded resident-context events.

  • benchmark (--features benchmark only): Runs the optional model-backed evaluation tooling.

perspt-core

The foundation crate. It defines the central types, data models, and configurations shared globally across all crates. Among workspace crates it depends only on perspt-sdk and, at build time, on the perspt-prompt-macros compiler.

Key components:

• Core Types: Structures representing the execution parameters, such as:

  pub enum NodeClass {
      /// Defines exported signatures, schemas, ownership manifests
      Interface,
      /// Operates on node-owned files plus adjacent sealed interfaces
      Implementation,
      /// Reconciles cross-owner or cross-plugin boundaries
      Integration,
  }


• Event Plane: Defines the event system carrying over 40 lifecycle events. The AgentEvent enum is transmitted across channels to update the TUI and log database records.

• Provider Gate: Integrates with the genai crate to handle provider-agnostic LLM requests, supporting token streaming, prompt assemblies, and backoff limits.

• Prompt Libraries: Hosts the versioned prompt section files under crates/perspt-core/prompts/ (session_bootstrap, graph_plan, repository_explore, adjudicate, evidence_summarize), compiled at build time by perspt-prompt-macros against the perspt-sdk prompt module.

perspt-agent

The authoritative PSP-9 runtime executor. It houses the governed tool loop, the work-graph dispatcher, tool definitions, and system sensors. Prompt text does not live here: the section libraries live under crates/perspt-core/prompts/.

• Governed Tool Loop: The loop in crates/perspt-agent/src/toolloop/ composes the perspt-sdk admissibility kernel, the measured acceptance gate, and the durable ledger. Every model-issued tool call becomes a typed proposal; admissible effects mutate an isolated CandidateWorkspace overlay; the CodingCandidateMeasurer re-measures the candidate under the configured test-evidence policy; and the gate is evaluated on the measurement, never on the model’s account of it. Ordinary development uses the resulting tests, while historical regression and protected external acceptance suites are explicit opt-ins.

• Work-Graph Dispatcher: Psp9AgentRuntime drives multi-node execution behind --max-parallel-nodes. A governed architect turn proposes graph revisions through the privileged update_graph tool; the dispatcher fills free slots with ready nodes whose file footprints do not conflict, stages each node’s winner into a content-addressed staging root, and promotes the merged result through one global integration gate. perspt-agent depends on perspt-sdk directly; there is no bridge layer.

perspt-tui

The terminal user interface built using the ratatui library. It provides high-performance terminal panels optimized for real-time human-in-the-loop review.

• ChatApp: An interactive chat client that supports streaming LLM dialogue, rendering tables, and parsing markdown.

• AgentApp: Displays active workspace executions. It visualizes the task graph DAG, displays active Lyapunov energy gauges, and opens a ReviewModal with unified code diffs for manual validation.

perspt-store

The local database storage library built on DuckDB. It manages all persistent schemas for sessions, LLM requests, energy convergence logs, and ledger commits.

Key interface structures:

• SessionStore: Encapsulates connection pools to the DuckDB file database.

• Schema Definitions: It creates and maintains eleven tables:

  • sessions: Top-level session tracking.

  • schema_migrations: Applied schema versions.

  • psp9_ledger_events: The durable hash-chained canonical event stream.

  • psp9_artifacts: Content-addressed artifact bytes keyed by hash.

  • psp9_authority_epochs: Per-session authority epoch counters.

  • psp9_grant_policies: Persisted signed grant intent.

  • psp9_external_effects: External effect intents keyed by idempotency key.

  • psp9_context_checkpoints: Durable context checkpoints per covered event root.

  • psp9_verdicts: Per-validator verdicts feeding the independence statistics.

  • psp9_calibration_epochs and psp9_calibration_samples: Conformal calibration state and delayed-audit sample labels.

perspt-policy

The security policy engine running the Starlark scripting runtime. It checks proposed mutations before execution to guarantee safety bounds.

Key API signatures:

pub enum PolicyDecision {
    Allow,
    Prompt(String),
    Deny(String),
}

impl PolicyEngine {
    pub fn evaluate(&self, command: &str) -> PolicyDecision;
    pub fn is_safe(&self, command: &str) -> bool;
}

Each Starlark policy is a single function that receives the command string and returns "allow", "prompt", "deny", or a boolean; the engine folds multiple policies by taking the strictest decision. The crate also exports the deterministic guards sanitize_command, validate_workspace_bound, and validate_artifact_mutation, which run before any Starlark evaluation.

perspt-sandbox

Bounded command-execution and process-isolation library. It uses Bubblewrap on Linux and sandbox-exec on macOS, fails closed when required isolation is unavailable, and exposes an explicit best-effort mode for externally isolated embedders and acknowledged native Windows operation.

• SandboxedCommand: Wraps standard library commands, enforcing memory ceilings, processor timeouts, environment sanitization, and redirecting stdout/stderr to files for analysis.

perspt-dashboard

A read-only local dashboard built using the Axum web framework. It reads execution history directly from the DuckDB store and streams live progress to a local browser page.

• Server Routing: Sets up REST routes for historical session analysis.

• SSE Stream: Sends live event frames (graph state changes, energy rollups) using Server-Sent Events (SSE).

perspt-sdk

The core platform library defining the reusable SRBN stability protocol specifications.

• Domain-Neutral SDK: Implements the mathematical formulations for the Measured Acceptance Gate. It has no knowledge of language rules, compilers, or project layouts. It operates purely on mathematical residuals and domain contracts.

• Domain Integration Trait: The core trait that custom domain extensions must implement:

  pub trait AgentDomainPackage: Send + Sync {
      fn domain_id(&self) -> DomainId;
      fn detect(&self, workspace: &WorkspaceSnapshot) -> DomainDetection;
      fn residual_schema(&self, scope: &DomainScope) -> ResidualSchema;
      fn energy_model(&self, scope: &DomainScope) -> EnergyModel;
      fn correction_directions(&self, residuals: &[ResidualEvent]) -> Vec<CorrectionDirection>;
      // PSP-9 agent contract (required):
      fn tool_entries(&self, scope: &DomainScope) -> Vec<ToolEntry>;
      fn hard_gate_policy(&self, scope: &DomainScope) -> HardGatePolicy;
      fn verifier_suite(&self, scope: &DomainScope) -> VerifierSuiteSpec;
      fn safety_barrier(&self, scope: &DomainScope) -> SafetyBarrierDisposition;
  }


perspt-coding

The coding-domain package, implementing the AgentDomainPackage trait.

• Coding Domain Model: Translates code verification outcomes (compiler syntax diagnostics, type warnings, failed tests, linter reports, and missing symbols) into SDK ResidualEvent representations.

• Language Adapters: Implements adapters for Rust, Python, and TypeScript to parse raw toolchain output, associate them with residual classes, and supply directed correction instructions (e.g. telling the Actuator what type error was detected and how to resolve it). Adapters are registered in the LanguageId-keyed CodingAdapterRegistry, so adding a language means registering an adapter, never editing the runtime.

perspt-research

An experimental verification domain package.

• Academic Manuscript Domain: Implements the SDK traits to manage research document production. It treats LaTeX syntax errors, missing citations, and bibliography inconsistencies as residual events, driving convergence towards a fully validated scientific manuscript. It serves as a proof of concept for the SDK’s domain-agnostic separation of concerns.

perspt-prompt-macros

The build-time compiler for prompt section files (PSP-10). Called from an owning crate’s build.rs, it parses every prompts/<stage>/NN_name.md file, runs the codegen validation list, and emits typed section structs into OUT_DIR. A malformed section fails cargo build with an error naming the offending file, never a session. The same validation functions serve the runtime bundle scanner and perspt prompts lint.

perspt-benchmark

Optional PSP-10 evaluation tooling, independent of the runtime mechanism tests. It exposes the perspt benchmark subcommand only when perspt-cli is built with --features benchmark; live runs require configured routes and credentials and never run in CI or normal validation. Suites (smoke, adaptive, full) run a cumulative ladder of arms over matched tasks and publish paired differences with a seeded bootstrap.
