SRBN Architecture

The Stabilized Recursive Barrier Network (SRBN) is the idea behind Perspt’s experimental autonomous coding agent. It comes from the Stability is All You Need paper series.

The idea is plain to state. A language model is good at proposing changes, but a proposal is only a guess. Left unchecked, a long run of guesses drifts: small mistakes pile up until the work is broken. SRBN refuses to trust a guess on its word. It measures every proposed change, keeps the change only when the measurement shows progress, and writes the kept result to a permanent record. Perspt’s coding agent implements this work via a reusable software-development-kit (SDK) platform (originally specified in the references section under PSP-8).

Theory vs. Implementation

This page describes both the SRBN paper series and how Perspt’s runtime implements it. Where a claim comes from the papers’ formal proofs, it is noted as a paper result. Where the developer team makes engineering choices that approximate or extend the theory, those are noted as implementation details. The theoretical framework is mature; empirical benchmarks on Perspt’s implementation have not yet been published.

Overview

The SRBN paper models coding tasks as a directed acyclic graph (DAG) of nodes with a sheaf structure that enforces consistency across shared boundaries. The system establishes the following concrete mechanics: each node owns a set of output files (ownership closure), runs a governed tool loop of typed tool calls against an isolated candidate, and must pass the measured acceptance gate on deterministic verifier evidence. Only then is the node’s winner promoted and committed to the Merkle ledger.

The runtime environment structures execution in two primary ways:

• Quadratic energy. Acceptance is gated on the quadratic residual energy \(V(x) = \sum_{e} w_e \lVert r_e \rVert^2\) (see Lyapunov Energy below).

• Mutable work graph. Rather than walking a precomputed topological order, a closed-loop scheduler re-evaluates a dependency-aware ready queue each round and may requeue, split, insert, or replan nodes as verifier evidence arrives. Each individual graph revision stays acyclic. Bounded parallelism shipped in v0.6.6: the multi-node dispatcher behind --max-parallel-nodes runs ready nodes concurrently, and two nodes with conflicting file footprints never run at the same time.

The core concepts of the control system — ownership closure, typed tool calls, the verifier profiles, node classes, and the Merkle ledger — are described below.

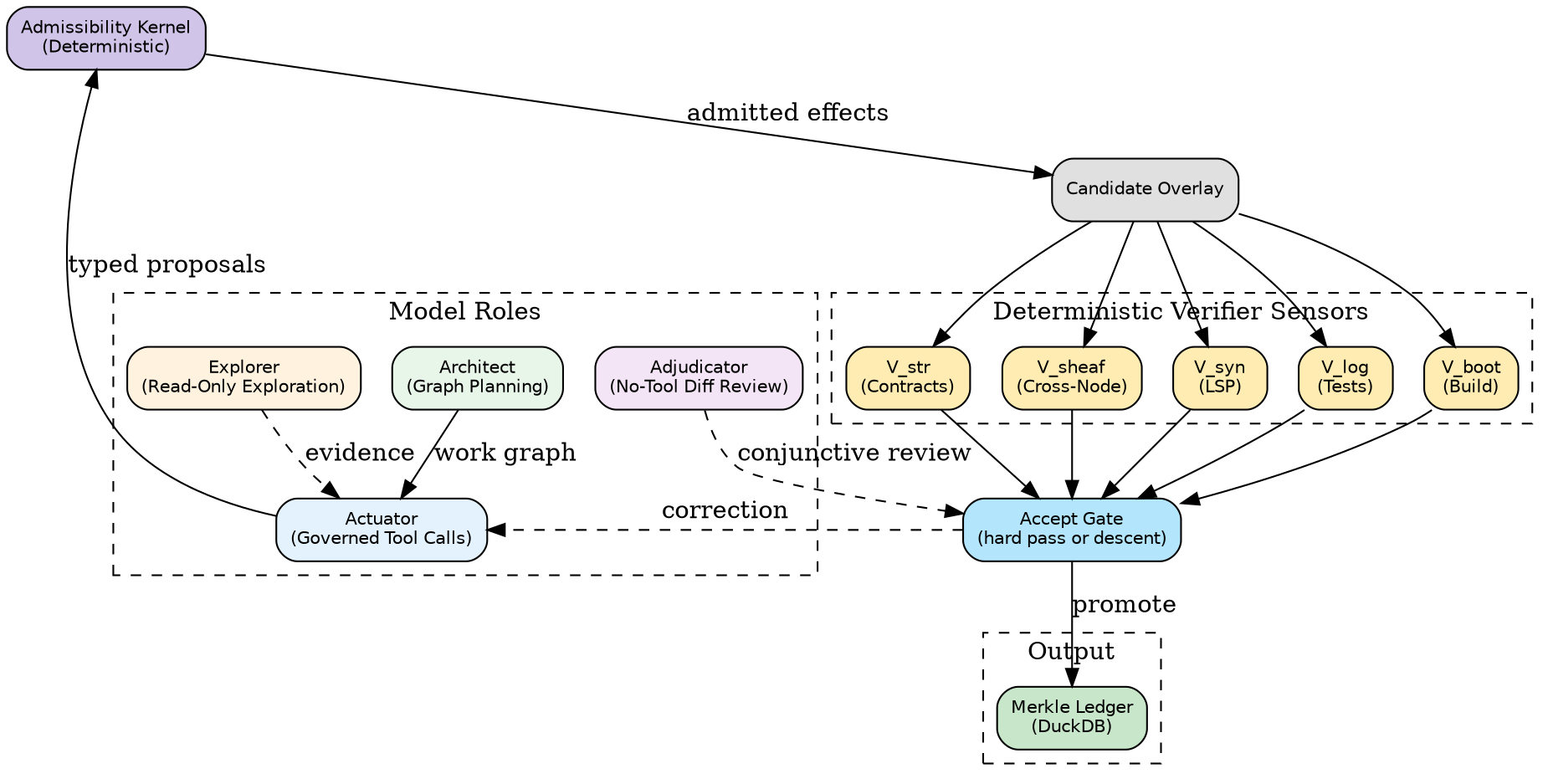

SRBN Architecture

The Control Loop

Bootstrap and the architect turn run once at the start; the remaining phases run per node inside the closed loop. The dispatcher re-evaluates the mutable work graph, fills free slots with ready nodes, and runs the governed tool loop for each. A node that fails its gate can open a bounded search forest and be re-attempted, so these phases are not a single topological pass:

#	Phase	Description
1	Session Bootstrap	Create the durable session, detect the domain package and language plugins, mint epoch-bound capabilities from the grant policy, and compile the prompt programs for the resolved routes and dialects.
2	Architect Turn	A governed, forced-tool-choice model turn restricted to the privileged update_graph tool proposes the work-graph revision. Acyclicity and completeness are validated deterministically before the revision is accepted; a single-node run keeps one node without an architect call.
3	Work-Graph Dispatch	Behind --max-parallel-nodes, the dispatcher fills free slots with ready nodes. Conflicting file footprints never run concurrently, and each node attempt is bound to a generation seeded from the current staging root, never from unstaged sibling state.
4	Governed Tool Loop	Per node, model turns issue typed tool calls. Each call becomes a proposal; the deterministic admissibility kernel decides whether it may affect the candidate; admitted effects mutate an isolated candidate overlay; sandboxed deterministic verifiers re-measure the candidate.
5	Accept Gate	A candidate is accepted on a hard verifier pass, or on a measured energy descent of at least \(\rho_{\text{gate}}\) below the best accepted state. Non-descending candidates consume the shared rejection budget; the gate is evaluated on the re-measured candidate, never on the model’s account of it.
6	Bounded Search (optional)	On gate failure with budget remaining, a bounded search forest runs up to three isolated branches with distinct strategies against the accepted root. Every branch action reserves its cost before it runs, exact no-goods suppress repeats, and exactly one selected candidate is committed through the same gate.
7	Staging & Integration	Each node’s winner lands in a content-addressed staging root instead of the user workspace. When dispatch settles, the merged state passes one global integration gate; failure restores the prior staging root.
8	Promotion	The integrated winner is written to the user workspace through journaled, descriptor-relative promotion and committed to the hash-chained ledger, from which perspt replay and perspt resume reconstruct the session.

Lyapunov Energy

The stability of generated code is measured using a Lyapunov energy function, adapted from the paper’s sheaf-theoretic formulation into concrete verification barriers. The system evaluates a canonical quadratic residual energy: each sensor \(e\) emits a residual with a non-negative magnitude \(r_e(x)\), and the energy is a weighted sum of their squares.

Let \(\mathcal{E}\) be the set of active sensors monitoring the system. For a proposed state \(x\), the total Lyapunov energy \(V(x)\) is defined by the quadratic form:

\[V(x) = \sum_{e \in \mathcal{E}} w_e \, \lVert r_e(x) \rVert^2\]

where \(w_e > 0\) represents the positive weight assigned to the residual class of sensor \(e\).

The five component readouts \(V_{syn}\), \(V_{str}\), \(V_{log}\), \(V_{boot}\), and \(V_{sheaf}\) are derived rollups of this same energy, grouped by component type, such that the total is the sum of the rollups:

\[V(x) = V_{\text{syn}} + V_{\text{str}} + V_{\text{log}} + V_{\text{boot}} + V_{\text{sheaf}}\]

In this formulation, the rollups themselves carry the squared, weighted residual contributions:

\[V_{\text{comp}} = \sum_{e \in \text{comp}} w_e \, \lVert r_e(x) \rVert^2\]

There is no secondary \(\alpha/\beta/\gamma\) aggregation pass. The per-class weights \(w_e\) are fixed by the domain package’s energy model, leaving the core mathematical engine as a pure sum of pre-weighted squares.

Components

We enumerate the five component categories and the specific residual classes mapped to them from the perspt-coding domain package:

Component	Mapped Residual Classes (Weights)	Operational Semantics
V_syn	Syntax (weight: 4.0) Type (weight: 3.0) Build (weight: 3.0)	Captures syntax errors, build-time compilation failures, and LSP diagnostic warnings. Compiler warnings or type-check diagnostics produce residuals of class Type, where the magnitude is the raw diagnostic count. A build failure raises a blocking residual of class Build.
V_str	ImportGraph (weight: 2.0) SymbolMismatch (weight: 2.0) InterfaceMismatch (weight: 2.5) OwnershipViolation (weight: 2.0) Policy (weight: 1.0) Dependency (weight: 1.5) Manifest (weight: 1.5) Format (weight: 0.25)	Measures structural contract adherence. If a required symbol defined by a node’s public interface signature is absent from the generated output files, the GoalPresence sensor registers a blocking SymbolMismatch residual, preventing convergence. Policy and format irregularities are likewise squared into this component.
V_log	TestFailure (weight: 2.0) Runtime (weight: 2.0) Regression (weight: 3.0)	Evaluates behavioral outcomes. Unit test failures yield a TestFailure residual with a magnitude matching the count of failing test cases. Post-build runtime smoke probes detect process crashes, tracebacks, or numeric anomalies, adding a Runtime residual.
V_boot	SensorUnavailable (weight: 1.0) ToolFailure (weight: 1.0)	Registers system infrastructure state. If a required sensor (e.g., an LSP server or test runner) is degraded or unavailable, it raises a SensorUnavailable residual, forcing the energy high so the system knows its stability status is indeterminate.
V_sheaf	SheafInconsistency (weight: 2.0)	Evaluates global structural consistency across nodes. Cross-node import/dependency mismatches or signature differences raise a SheafInconsistency residual.

Convergence Criterion

The system is considered stable if and only if the candidate achieves a hard pass: every required verifier and every hard policy constraint passes. A domain may additionally declare an analytic energy floor; a candidate at or below the floor is checkpointed as a classified terminal state but is never reported as verified success. If the state is not stable, the accept-gate evaluates descent. The single runtime acceptance knob is --rho-gate. A state \(x\) can be provisionally accepted during convergence if:

\[V(x) \leq V(x_{\text{best}}) - \rho_{\text{gate}}\]

where \(x_{\text{best}}\) is the best previously accepted state, and \(\rho_{\text{gate}}\) is the minimum descent gate (default \(0.50\)), ensuring non-trivial progress.

Spectral and Independence Diagnostics

The system supports an energy-slope constant \(\mu = 2\,\lambda_{\min}^{+}(A)\) — twice the algebraic connectivity (Fiedler value) of the verification graph built from the quadratic energy \(V(x)=x^{\top}Ax\). It measures how strongly the verifier ensemble drives the code toward consensus, and its sensitivity to a candidate verifier edge distinguishes an independent verifier (which raises the spectral gap) from a redundant one. A companion measure, \(\rho_{\text{eff}}\), captures effective verifier independence from observed miss correlations.

Note

mu and \(\rho_{\text{eff}}\) are diagnostics, not acceptance-gate inputs — by design they are computed off the critical path and never block a node. The independence statistics are live: independence::compute folds the psp9_verdicts ledger into per-validator miss rates and matched-stratum pair statistics, and \(\rho_{\text{eff}}\) is reported only when every pair meets the matched-sample floor (a Hoeffding upper confidence bound backs the certified value). perspt status and the dashboard’s Governance page surface these figures. The spectral eigensolver (spectral::VerificationGraph) remains an offline perspt-sdk diagnostic.

Node Classes

The system utilizes three node classes that govern execution order and verification:

Class	Description
Interface	Define exported signatures, schemas, and seals. Must be committed before dependent Implementation nodes can proceed. Produces an interface-seal digest.
Implementation	Operate on owned files using sealed interfaces from parent nodes. The bulk of code generation happens here.
Integration	Reconcile cross-owner boundaries after all dependent nodes converge. Used for multi-language projects or cross-module wiring.

Ownership Closure

The ownership closure rule is a fundamental invariant of PSP-5:

Each output file appears in exactly one node’s output_files list.

This prevents conflicting writes. In the current runtime the guarantee is enforced at dispatch through footprints: two nodes whose declared file footprints conflict never run concurrently, and each node attempt is seeded from the staging root rather than from unstaged sibling state.

Model Roles

The runtime uses one required and two optional model roles. Verification is not a model role: the verifiers are deterministic sandboxed sensors (compilers, test runners, linters), never a model call.

Role	Purpose	CLI Flag
Actuator	Proposes governed coding tool calls; the only role that can mutate the candidate. Also serves the architect’s update_graph turn.	--model / --actuator-model
Explorer	Optional cheaper read-only repository exploration.	--explorer-model
Adjudicator	Optional no-tool conjunctive diff adjudication before promotion.	--adjudicator-model

Configure per-role routes via CLI:

perspt agent \
  --actuator-model <provider::model> \
  --explorer-model <provider::model> \
  --adjudicator-model <provider::model> \
  --fallback-model <provider::model> \
  "Build a REST API"

--fallback-model is repeatable and defines the ordered sticky actuator failover route. Persistent per-role routes live in the [models] table of config.toml as fully qualified provider::model values, so identity, calibration, and replay never depend on an ambient default provider. No model name is hard-coded in the runtime.

PSP-10: Model-Conditioned Prompt Programs

PSP-10 replaces free-form prompt templates with compiled prompt programs: typed sections, deterministic composition per model route, and ledgered digests for every model call.

Typed Prompt Sections

Prompt text lives in versioned section files under crates/perspt-core/prompts/<stage>/NN_name.md, one directory per stage (session_bootstrap, graph_plan, repository_explore, adjudicate, evidence_summarize), beside a committed manifest.toml. The perspt-prompt-macros crate compiles every section at build time from the owning crate’s build.rs: it parses the front matter into a typed SectionSchema (id, version, role, priority, size bound, declared variables), runs the codegen validation list, and emits typed section structs into OUT_DIR. A malformed section fails cargo build with an error naming the offending file — never a session.

Stage Composition and Digests

At runtime a StageComposition composes one stage’s rendered sections for the resolved model route and dialect into a CompiledPromptProgram: the ordered messages with per-message rendered hashes, any sections dropped by deterministic budget fitting, the tool-spec hash, and a program_digest computed over canonical bytes of the identity-bearing fields. One model call binds a platform program (the universal envelope) and a domain program; the pair forms a CompiledPromptInvocation with its own invocation digest.

Provenance

Every model call is ledgered: a prompt_program_compiled event records each program’s sections and digest, and a prompt_program_invoked event records the actor, turn, platform digest, domain digest, invocation digest, and tool-spec hash. A session’s prompts are therefore reconstructible and diffable after the fact. Validated replacement bundles may substitute section bodies live only behind --allow-experimental-prompts; external bodies obey exactly the validation rules the build does.

The perspt prompts CLI

perspt prompts list                   # every compiled section: id, version, stage, role, hash
perspt prompts render <stage>         # compose one stage with fixture variables
perspt prompts lint --bundle <dir>    # validate an external bundle directory
perspt prompts manifest <dir>         # regenerate a library's manifest.toml
perspt prompts explain-session --db-path <db> <session-id>
                                      # the programs a session actually compiled, with digests

perspt context explain-turn is the companion command for a session’s recorded resident-context events (compactions and refusals).

Rejection Budget

There is no per-error-type retry table. The loop runs against a single shared, non-replenishing rejection budget \(B\) (default 4, --rejection-budget): non-descending candidates and recovery attempts consume it, while accepted descents do not. Together with the descent gate this yields the finite-decision bound \(\lfloor V_0 / \rho_{\text{gate}} \rfloor + B + 1\) on gate decisions per node. When the budget is exhausted, the gate issues a residual certificate enumerating the remaining errors and the node terminates as a classified failure rather than looping. In headless mode (--yes) the session exits with a non-zero code when the outcome is not verified success.

Typed Tool Proposals

The Actuator does not emit artifact bundles. Every mutation is an individual typed tool call: the call becomes an effect proposal, the deterministic admissibility kernel checks it against the node’s capability (path patterns, command patterns, effect kinds), and only an admitted effect executes — against the isolated candidate overlay, never the user workspace. Proposed commands additionally pass the deterministic sanitize_command and workspace-bound guards plus the Starlark policy engine, and normally run inside the process sandbox. Explicit native Windows reduced-isolation mode retains those agent checks but runs child processes with host-user authority. The candidate journals a pre-image of every file it touches, so any attempt can be discarded without residue.

Plugin-Driven Verification

Language plugins determine the verification toolchain:

Plugin	LSP Server	Test Runner	Init Command	Required Binaries
Rust	rust-analyzer	cargo test	cargo init	cargo, rustc
Python	ty or pyright	pytest	uv init --lib	uv, python3
JavaScript	typescript-language-server	npm test	npm init -y	node, npm
Go	gopls	go test	go mod init	go

The plugin is selected automatically during the Detection phase based on existing project files or the task description. Multi-language projects activate multiple plugins simultaneously.

Degraded Verification

When a verification tool is unavailable (e.g., ty not installed), the SRBN engine falls back to degraded mode:

• Sensor fallback: If the primary LSP server is not found, try a secondary (e.g., pyright instead of ty). Emit a SensorFallback event.

• Degraded stages: If no LSP server is available at all, V_syn is set to 0.0 and the stage is marked degraded. Energy convergence proceeds without that component.

• Stability blocked: If too many stages degrade, the node cannot converge and is escalated.

Merkle Ledger

All changes are recorded in a DuckDB-backed Merkle ledger:

• Integrity - Each commit has a cryptographic hash chaining to its parent

• Rollback - Roll back a session’s newest completed promotion via perspt ledger --rollback (the argument is a session id prefix)

• Resume - perspt resume continues an interrupted session from its newest durable checkpoint by folding the ledger (see Crash Resume)

• Audit - Complete trail of AI-generated changes with energy breakdowns

perspt ledger --recent     # View recent commits
perspt ledger --rollback abc123
perspt ledger --stats      # Session statistics

Isolation and Resume

Nothing speculative ever touches the user workspace. Three layers keep observed work separated from accepted work, and crash resume preserves the separation.

Key Invariant

Model-proposed work reaches the user workspace only through the accept gate, the staging root, and the global integration gate — in that order. Everything else is discarded without residue.

Candidate Overlays

Each node attempt runs in a CandidateWorkspace overlay. Admitted effects mutate the overlay; every touched file’s pre-image is journaled; verifiers measure the overlay, not the workspace. A rejected attempt is dropped wholesale.

Test evidence follows an explicit policy. The ordinary evolving policy measures the resulting implementation and resulting tests together, which is necessary when a task intentionally changes a contract. A backward-compatible run adds a regression view with recognized historical test files restored. An external-oracle run adds a separately supplied acceptance overlay that the actuator does not promote. These are additional test-stage views of the same realized candidate, not alternate paths around the syntax, build, or test requirements.

Search Forest Branches

A bounded search forest opens at most three branch identities, one branch attempt at a time. Every branch runs the ordinary governed loop in an isolated eager-copy workspace against the same immutable accepted root, and its internal states stay private to the forest. Exactly one selected candidate is committed through a single gate submission, and the committed decision must equal the preview or the forest fails closed. Exact no-goods learned from failed branches suppress equivalent later attempts, and every branch action reserves its cost against the declared limit vector before it runs.

Staging and the Integration Gate

With --max-parallel-nodes above 1, node winners land in a content-addressed staging root instead of the user workspace. Disjoint footprints are enforced at dispatch; the merged state must pass one global integration gate before promotion, and a gate failure restores the prior staging root. The integration gate uses the same session-bound test policy as the node gates: resulting tests for ordinary evolving development, an additional historical regression view for explicitly backward-compatible work, or a separately protected external acceptance overlay.

Crash Resume

perspt resume folds the durable ledger rather than deserializing live state. A single-node session re-enters its loop from the newest durable candidate checkpoint with exactly the remaining budgets, its accepted candidate rebuilt from content-addressed artifacts and a fresh capability minted at the current authority epoch (a bumped epoch refuses the resume). A multi-node session resumes through graph dispatch: the staging root is rebuilt from the ledger and every winner still reaches the user workspace only through the global integration gate.
