Architecture

Perspt is a Rust workspace of fourteen crates plus a dev-only xtask automation crate. Eight crates make up the running program, four crates form the reusable platform layer (SDK, prompt codegen, and two domain packages), one crate is the optional feature-gated benchmark harness, and one root crate ties them together. Version 0.6.6 implements the PSP-9 governed candidate runtime and the PSP-10 typed prompt, search, and integration layers.

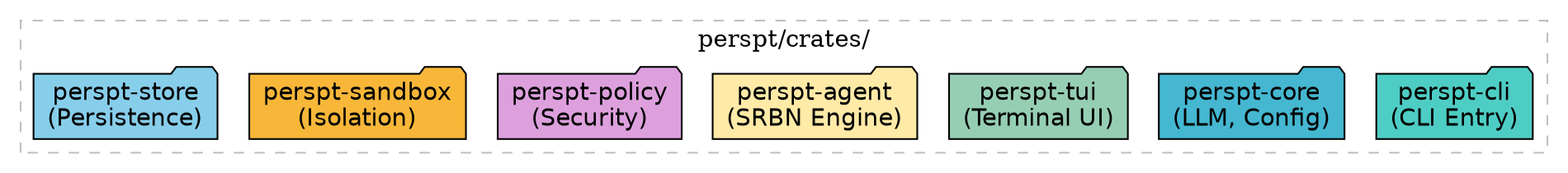

Workspace Layout

perspt/                       # Root: integration crate (perspt)
+-- crates/
|   +-- perspt-core/          # Types, config, LLM provider, events, plugins, prompts
|   +-- perspt-agent/         # Governed candidate runtime, tool loop, verifier, search
|   +-- perspt-tui/           # Ratatui TUI (chat + agent + review modal)
|   +-- perspt-cli/           # Clap CLI entry point, subcommands
|   +-- perspt-store/         # DuckDB session store
|   +-- perspt-policy/        # Starlark policy engine
|   +-- perspt-sandbox/       # Command sandboxing
|   +-- perspt-dashboard/     # Axum web dashboard
|   +-- perspt-sdk/           # Domain-neutral SRBN platform SDK
|   +-- perspt-prompt-macros/ # Build-time prompt section codegen
|   +-- perspt-coding/        # Coding domain package (first domain)
|   +-- perspt-research/      # Research domain package (second domain)
|   +-- perspt-benchmark/     # Optional credentialed evaluation harness
+-- xtask/                    # PSP code-rule checker (dev-only)
+-- tests/                    # Integration tests
+-- docs/                     # Sphinx documentation

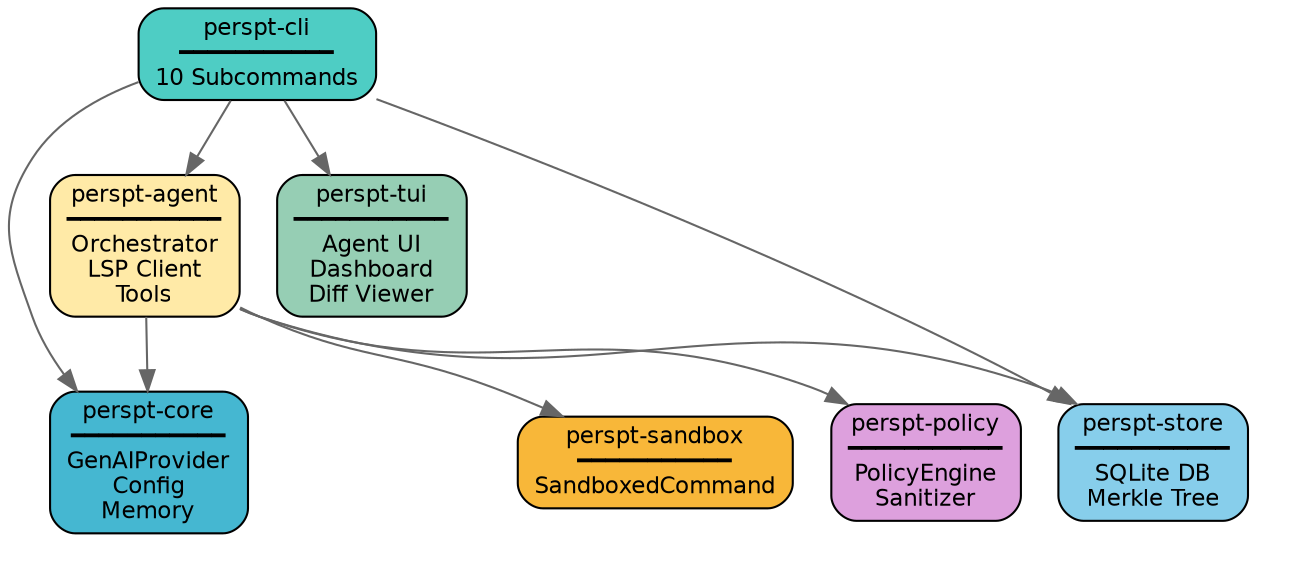

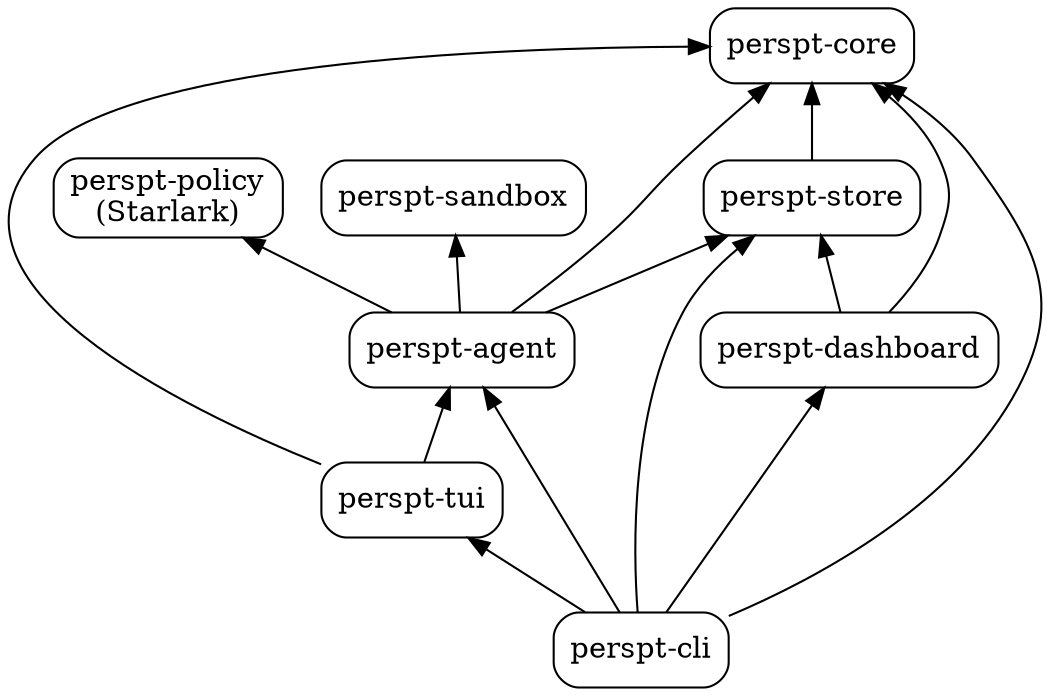

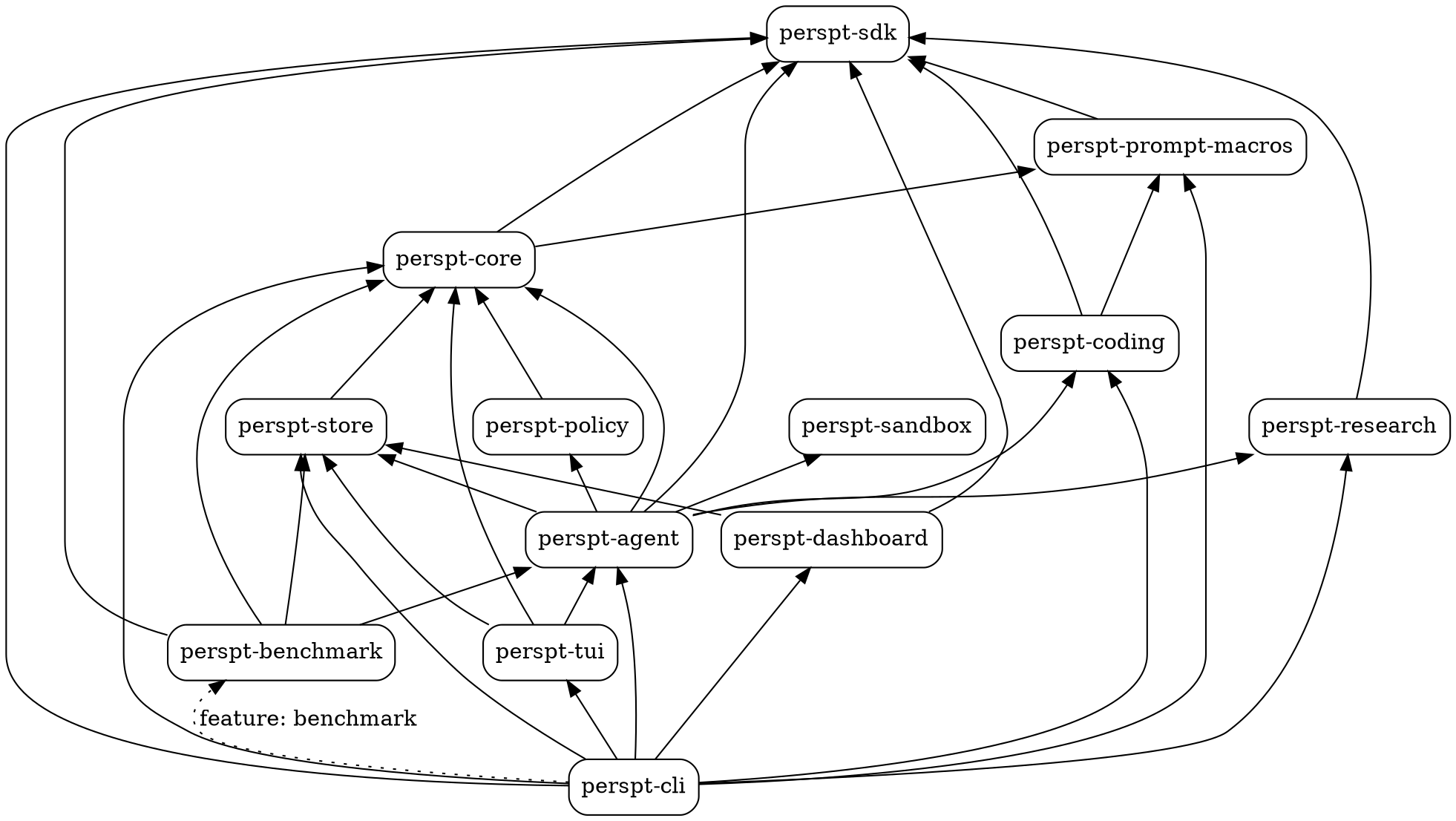

Dependency Graph

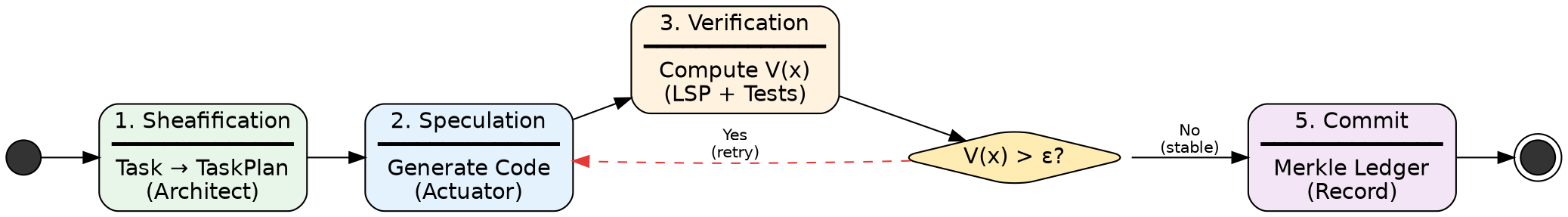

PSP-9 / PSP-10 Overview

PSP-9 replaced the multi-agent orchestrator with a single governed candidate runtime: every model-issued tool call becomes a typed proposal, a deterministic admissibility kernel (in perspt-sdk) decides whether it may affect the reversible candidate workspace, and every gate is evaluated on the re-measured candidate, never on the model’s account of it. Every event lands in a hash-chained durable ledger (perspt-store), so sessions replay and resume deterministically. PSP-10 adds typed prompt section libraries with build-time codegen (perspt-prompt-macros), the bounded search forest with exact no-good learning, graph staging behind a global integration gate, and the optional benchmark harness (perspt-benchmark).

Crate: perspt-core

The foundation crate. Re-exports all canonical types.

Modules:

• types - Core shared types, split into submodules types/{context,model,plan,policy,verification,workspace}.rs (see Core Type Inventory below)

• config - Config { provider, model, api_key, ... } plus per-tier model overrides

• events - AgentEvent (33 variants), AgentAction, NodeStatus, ActionType

• llm_provider - GenAIProvider wrapping the genai crate; EOT_SIGNAL

• portfolio - ModelPortfolio with provider handles and declared caps

• plugin - LanguagePlugin trait + PythonPlugin, RustPlugin, JsPlugin

• prompts - Typed prompt section libraries (prompts/*/) compiled at build time by perspt-prompt-macros

• memory - ProjectMemory loaded from .perspt/memory.toml

• normalize - Model and provider name normalization

Key Plugin Types:

pub trait LanguagePlugin: Send + Sync {
    fn name(&self) -> &str;
    fn detect(&self, path: &Path) -> bool;
    fn get_init_action(&self, opts: &InitOptions) -> ProjectAction;
    fn test_command(&self) -> String;
    fn syntax_check_command(&self) -> Option<String>;
    fn verifier_profile(&self) -> VerifierProfile;
    fn owns_file(&self, path: &str) -> bool;
    // ... ~25 methods total
}

Plugins provide verifier profiles with fallback chains:

pub struct VerifierProfile {
    pub plugin_name: String,
    pub capabilities: Vec<VerifierCapability>,
    pub lsp: LspCapability,
}

pub struct VerifierCapability {
    pub stage: VerifierStage,       // SyntaxCheck | Build | Test | Lint | Format
    pub command: Option<String>,     // Primary command
    pub available: bool,
    pub fallback_command: Option<String>,
    pub fallback_available: bool,
}

Crate: perspt-agent

The governed PSP-9/PSP-10 agent runtime.

Modules:

• runtime - Psp9AgentRuntime: work-graph planning, bounded dispatch, node assembly, adjudication, staging and integration, resume, and the bounded search forest (runtime/search/)

• toolloop - The SRBN tool loop: each model-issued tool call becomes a typed proposal; the deterministic admissibility kernel decides whether it may affect the candidate

• candidate - CandidateWorkspace: reversible coding-candidate overlay

• measure - CodingCandidateMeasurer: full verifier suite at gate boundaries, cheap syntax-only pass at mutation boundaries

• verifier - Governed verifier sandbox: compiler/test/lint processes run under a deny-network profile with a read allow-list

• tools - AgentTools executor and sandboxing, the CandidateHandlerRegistry execution plane (tools/handlers/), and first-party tool families (tools/families/{db,system}.rs)

• transport - GenAiTransport: the only adapter between the SDK’s provider-neutral contract and perspt-core’s genai driver

• turn - Universal actor turn runner (worker, explorer, architect, adjudicator, evidence summarizer, capability probe)

• grant - Persistent grant signing-key resolution

• probe - probe_route/ProbeReport: behavioral provider probes

• promote - Descriptor-relative workspace promotion on Unix; native write-through replacement plus best-effort reparse-point rejection on Windows

• realize - SnapshotRealizer: content-addressed workspace states

• exploration - Deterministic, read-only repository orientation

• external_tools - Official-SDK MCP 2026-07-28 client (stdio/stateless HTTP; tools, resources, prompts, roots, sampling, elicitation, subscriptions, MRTR/tasks), with local admission, replay, and separate agent/read-only-chat lifecycles

• lsp - LspClient (JSON-RPC over stdio)

Runtime Flow:

Psp9AgentRuntime::run() drives one governed session:

1. Exploration - deterministic read-only repository map; --exploration-only adds an interactive explorer tool loop and stops before any mutation

2. Planning - one forced-tool-choice architect turn, restricted to the privileged update_graph tool, produces the work graph; the host never fabricates multi-node graphs

3. Dispatch - bounded multi-node scheduling (runtime/dispatch.rs); --max-parallel-nodes sets the concurrency (default 1; above 1 requires --yes)

4. Tool loop - per node, the governed loop (toolloop/) turns each model tool call into a typed proposal, admits it through the deterministic kernel, and realizes it against the reversible candidate overlay (candidate.rs)

5. Measurement - measure.rs re-measures the candidate through the plugin verifier suite inside the sandboxed verifier (verifier.rs), or through explicitly acknowledged host-user execution in native Windows reduced- isolation mode; the gate is evaluated on the re-measured candidate, never on the model’s account of it. The default evolving-test policy measures the resulting tests; backward-compatible and protected external evidence are explicit additions, never implicit assumptions about every task’s contract

6. Adjudication - a tool-free validator reviews only the realized diff and records an uncalibrated verdict (runtime/adjudicate.rs)

7. Staging and integration - node winners stage into a graph workspace and must pass the global integration gate before descriptor-relative promotion (runtime/integrate.rs, promote.rs). Unix promotion holds ancestor directory descriptors; Windows uses write-through native replace operations and rejects observed reparse points, without claiming the same race-resistant boundary.

8. Recording - every event lands in the durable hash-chained ledger (runtime/recorder.rs); interrupted sessions resume from the newest durable checkpoint with exactly the remaining budgets (runtime/resume.rs)

Failed attempts feed the bounded search forest (runtime/search/): sequential, at most three branch identities, one branch attempt (quantum) at a time, with exact no-good learning that suppresses only byte-identical repeated attempts.

Crate: perspt-store

DuckDB-backed persistence. Not SQLite.

pub struct SessionStore {
    conn: Mutex<Connection>,  // duckdb::Connection
}

DuckDB Schema and Tables

The schema (crates/perspt-store/src/schema.rs) is applied through an idempotent transactional migration; schema_migrations records the applied version. Eleven tables:

Database Tables

Table Name	Key Columns	Purpose
sessions	session_id (PK), task, working_dir, merkle_root, detected_toolchain, status	Life cycle of agent sessions
schema_migrations	version (PK), applied_at	Applied schema versions
psp9_ledger_events	(session_id, sequence) (PK), event_json, prev_hash, hash	The durable canonical event stream; hash-chained
psp9_artifacts	content_hash (PK), content, byte_len, media_type	Content-addressed artifact bytes
psp9_authority_epochs	session_id (PK), epoch	Single-writer authority fencing per session
psp9_context_checkpoints	(session_id, covered_event_root) (PK), checkpoint_json	Durable conversation checkpoints for resume
psp9_external_effects	(session_id, idempotency_key) (PK), intent_hash, status	External (MCP) effect intents and results, idempotent
psp9_grant_policies	policy_id (PK), session_id, policy_json, revoked	Capability grant policies
psp9_verdicts	(session_id, candidate_id, validator_id) (PK), stratum, missed, unsafe_label	Adjudication verdicts per candidate
psp9_calibration_epochs	epoch_id (PK), stratum, target_rho, threshold, state, sample_count	Conformal calibration epochs
psp9_calibration_samples	(epoch_id, sample_id) (PK), score, unsafe_label, audit_selected	Calibration samples; unsafe_label stays NULL until the delayed audit label arrives

Row types live in store/rows.rs (SessionRecord) and store/psp9_ledger.rs (Psp9LedgerRow, Psp9VerdictRow, Psp9CalibrationEpochRow, Psp9ExternalEffectRow). repair.rs backs perspt db repair for recovering a database with a poisoned WAL.

Crate: perspt-tui

Ratatui-based terminal UI with two modes:

• ChatApp - Interactive chat with streaming, LaTeX math transpilation, ASCII table wrapping, and markdown saving

• AgentApp - Agent dashboard with work-graph tree, energy display, review modal

The agent TUI is entered through run_agent_tui_with_runtime (agent_app.rs), which owns the Psp9AgentRuntime for the session and wires its event and action channels.

Key components:

Component	Purpose
Dashboard	Main agent dashboard layout
TaskTree	Work-graph visualization with node states
ReviewModal	Grouped diff viewer with approve/reject/correct
DiffViewer	Unified diff display
telemetry	TUI-side energy component display types
FrameRateLimiter	60fps cap, adaptive rendering

Crate: perspt-policy

Starlark policy evaluation:

pub struct PolicyEngine {
    policies: Vec<FrozenModule>,
    policy_dir: PathBuf,
}

pub enum PolicyDecision {
    Allow,
    Prompt(String),
    Deny(String),
}

Utility functions:

• sanitize_command(cmd) -> SanitizeResult (split, validate, filter)

• validate_workspace_bound(cmd, working_dir) - Ensure commands stay in scope

• validate_artifact_mutation(path, workspace_root, operation) - Protect root project files from delete/move

Crate: perspt-sandbox

Process isolation with active timeout enforcement:

pub trait SandboxedCommand: Send + Sync {
    fn execute(&self) -> Result<CommandResult>;
    fn display(&self) -> String;
    fn is_read_only(&self) -> bool;
}

pub struct BasicSandbox {
    program: String,
    args: Vec<String>,
    working_dir: Option<PathBuf>,
    timeout: Duration,  // Active: spawn + poll + kill on deadline
}

Core Type Inventory

All canonical shared types live in perspt_core::types, re-exported from types/mod.rs:

Workspace (``types/workspace.rs``):

Type	Description
NodeClass	Interface, Implementation (default), Integration
VerifierStrictness	Default (compile + tests), Strict (adds lint), Minimal (syntax only)

Model (``types/model.rs``):

Type	Description
ModelTier	Architect, Actuator, Verifier, Speculator; default_model() maps each tier to its recommended default route

Energy (``types/context.rs``):

Type	Fields
EnergyComponents	v_syn (LSP), v_str (contracts), v_log (tests), v_boot (commands), v_sheaf (cross-node); total() is the plain sum of the rollups

Task Planning (``types/plan.rs``):

Type	Description
TaskPlan	Container for Vec<PlannedTask> with ownership-closure, acyclicity, and implicit-dependency validation
PlannedTask	id, goal, context_files, output_files, dependencies, task_type, contract, command_contract, node_class, dependency_expectations
TaskType	Code, Command, UnitTest, IntegrationTest, Refactor, Documentation
PlannedContract	interface_signature, invariants, forbidden_patterns, tests
PlannedTest	name, criticality (informational string label)
DependencyExpectation	required_packages, setup_commands, min_toolchain_version
CommandContract	command, expected_exit_code, expected_files, forbidden_stderr_patterns, working_dir

Verification and Context (``types/verification.rs``):

Type	Description
SensorStatus	Available | Fallback { actual, reason } | Unavailable { reason }
StageOutcome	stage, passed, sensor_status, output
ArtifactKind	Signature, Schema, SymbolInventory, InterfaceSeal
StructuralDigest	Content hash of a compile-critical structural artifact (signatures, schemas, seals)
SummaryDigest	Condensed summary with hash; SummaryKind is IntentSummary, VerifierResults, or DesignRationale
ContextBudget	byte_limit (100KB default), file_count_limit (20)
RestrictionMap	Per-node context boundary: owned_files, sealed_interfaces, structural/summary digests, dependency commits
ContextPackage	The bounded, reproducible context assembled for a node
ContextProvenance	Audit trail of the digests and files a node’s context used

Policy (``types/policy.rs``):

Type	Description
CommandPolicyDecision	Allow, Deny, RequireApproval
ManifestMutationPolicy	Allow, Deny

Events System

The event system uses unbounded tokio channels:

// In perspt_core::events::channel
pub type EventSender = UnboundedSender<AgentEvent>;
pub type EventReceiver = UnboundedReceiver<AgentEvent>;
pub type ActionSender = UnboundedSender<AgentAction>;
pub type ActionReceiver = UnboundedReceiver<AgentAction>;

AgentEvent has 33 variants (crates/perspt-core/src/events.rs):

• Planning: PlanReady, PlanGenerated, PlanRevised, FallbackPlanner

• Execution: NodeSelected, BundleApplied, NodeCompleted

• Verification: VerificationComplete, DegradedVerification, SensorFallback

• Sheaf: SheafValidationComplete

• Branches: BranchCreated, InterfaceSealed, BranchFlushed, BranchMerged, DependentUnblocked

• Escalation: EscalationClassified, GraphRewriteApplied

• Context: ContextDegraded, ContextBlocked, StructuralDependencyMissing, ProvenanceDrift

• Budget: BudgetUpdated

• File Ops: FileDeleted, FileMoved

• UI: ApprovalRequest, TaskStatusChanged, EnergyUpdated, Log

• Lifecycle: Complete, Error, ModelFallback, ToolReadiness

The sheaf and branch variants are vestigial: the TUI still renders them for older ledger streams, but the PSP-9 runtime no longer emits them.

Data Flow

User Input
    |
[perspt-cli]  Parse args (clap)
    |
[perspt-core]  Config + Provider init
    |
+---+---+
|       |
chat    agent
|       |
[tui]   [perspt-agent]
|       |
|       +-- Psp9AgentRuntime
|       |     +-- exploration        -> read-only repository map
|       |     +-- plan               -> architect turn (update_graph)
|       |     +-- dispatch           -> bounded multi-node scheduler
|       |     +-- tool loop          -> proposals -> admissibility kernel
|       |     +-- candidate overlay  -> reversible workspace mutations
|       |     +-- verifier/measure   -> sandboxed deterministic verification
|       |     +-- adjudicate         -> diff-only validator verdict
|       |     +-- integrate/promote  -> staging, integration gate, promotion
|       |     +-- recorder           -> hash-chained ledger events
|       |
|       +-- GenAiTransport            (provider-neutral model plane)
|       +-- CandidateHandlerRegistry  (open execution plane + tool families)
|       +-- ExternalToolRuntime       (governed MCP)
|       +-- LspClient                 (JSON-RPC stdio)
|       |
|       +-- EventSender --> [perspt-tui AgentApp / perspt-dashboard]
|       +-- ActionReceiver <-- [perspt-tui ReviewModal]
|
[perspt-store]  DuckDB persistence (ledger, checkpoints, verdicts)
[perspt-policy]  Starlark rule evaluation
[perspt-sandbox]  Process isolation

Streaming Contract

Both chat and agent mode use the same streaming protocol:

1. LLM requests stream chunks over mpsc::UnboundedSender<String>

2. End-of-response signaled by EOT_SIGNAL (<|EOT|>)

3. Provider sends EOT - UI never adds its own

4. UI batches channel messages, handles first EOT, ignores duplicates

5. Streaming buffer updates the last assistant message live

6. Pending inputs queue until EOT is received

Warning

Never block the UI select loop. Spawn LLM work on tokio tasks and send results via the channel.
