perspt-tui API

Terminal UI components for Perspt built on the Ratatui framework.

Overview

perspt-tui provides the visual interface for chat, agent, and logs modes:

• ChatApp — Interactive chat TUI

• AgentApp — Agent mode dashboard

• LogsViewer — LLM logs analysis TUI

• Dashboard, DiffViewer, ReviewModal, TaskTree — UI components

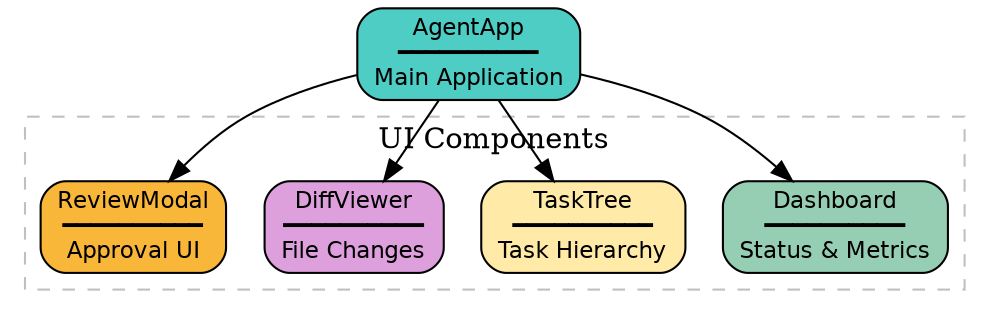

TUI Component Architecture

Modules

AgentApp

The main TUI application for agent mode.

AgentApp structure

pub struct AgentApp {
    // Current view state
    view: View,
    // Task tree widget
    task_tree: TaskTree,
    // Status dashboard
    dashboard: Dashboard,
    // Active diff viewer (if showing changes)
    diff_viewer: Option<DiffViewer>,
    // Review modal (if awaiting approval)
    review_modal: Option<ReviewModal>,
}

pub enum View {
    Dashboard,
    TaskTree,
    DiffView,
    Review,
}

impl AgentApp {
    pub fn new() -> Self
    pub fn run(&mut self, terminal: &mut Terminal<impl Backend>) -> Result<()>
    pub fn handle_event(&mut self, event: Event) -> Result<Option<Action>>
}

run_agent_tui(orchestrator: SRBNOrchestrator) → Result<()>

Entry point for the agent TUI. Initializes the terminal and runs the event loop.

Dashboard

Status dashboard displaying metrics and progress.

Dashboard Widgets

Widget	Information Displayed
Session Info	Session ID, start time, elapsed duration
Token Usage	Input/output tokens, cost estimate
Energy Gauge	Current V(x) with α, β, γ components
Task Progress	Completed/total nodes, current node

Dashboard structure

pub struct Dashboard {
    session_id: String,
    start_time: Instant,
    tokens_used: usize,
    current_energy: Energy,
    task_progress: (usize, usize),
}

impl Dashboard {
    pub fn render(&self, frame: &mut Frame, area: Rect)
    pub fn update_energy(&mut self, energy: Energy)
    pub fn update_tokens(&mut self, tokens: usize)
}

TaskTree

Hierarchical task visualization.

TaskTree widget

pub struct TaskTree {
    nodes: Vec<TreeNode>,
    selected: usize,
    expanded: HashSet<usize>,
}

pub struct TreeNode {
    pub id: usize,
    pub label: String,
    pub status: NodeStatus,
    pub children: Vec<usize>,
}

impl TaskTree {
    pub fn from_task_plan(plan: &TaskPlan) -> Self
    pub fn render(&self, frame: &mut Frame, area: Rect)
    pub fn select_next(&mut self)
    pub fn select_prev(&mut self)
    pub fn toggle_expand(&mut self)
}

DiffViewer

Side-by-side file diff display.

DiffViewer widget

pub struct DiffViewer {
    file_path: PathBuf,
    old_content: String,
    new_content: String,
    scroll_offset: usize,
}

impl DiffViewer {
    pub fn new(path: PathBuf, old: String, new: String) -> Self
    pub fn render(&self, frame: &mut Frame, area: Rect)
    pub fn scroll_up(&mut self)
    pub fn scroll_down(&mut self)
}

ReviewModal

Change approval/rejection modal.

ReviewModal widget

pub struct ReviewModal {
    changes: Vec<Change>,
    selected: usize,
}

pub enum ReviewDecision {
    Approve,
    Reject,
    Edit,
}

impl ReviewModal {
    pub fn new(changes: Vec<Change>) -> Self
    pub fn render(&self, frame: &mut Frame, area: Rect)
    pub fn get_decision(&self) -> Option<ReviewDecision>
}

LogsViewer

Interactive TUI for analyzing LLM request/response logs.

LogsViewer structure

pub struct LogsViewer {
    store: SessionStore,
    sessions: Vec<SessionRecord>,
    requests: Vec<LlmRequestRecord>,
    active_panel: ActivePanel,
    detail_tab: DetailTab,
}

pub enum ActivePanel {
    Sessions,
    Requests,
    Detail,
}

pub enum DetailTab {
    Prompt,
    Response,
    Stats,
}

impl LogsViewer {
    pub fn new(store: SessionStore) -> Self
    pub fn handle_key(&mut self, key: KeyCode)
    pub fn render(&mut self, frame: &mut Frame)
}

run_logs_viewer(store: SessionStore) → Result<()>

Entry point for the logs viewer TUI.

Telemetry

Real-time telemetry events from the orchestrator.

pub enum TelemetryEvent {
    EnergyUpdate(EnergyComponents),
    TokensUsed { input: usize, output: usize },
    StepComplete { node_id: String },
}

pub struct EnergyComponents {
    pub v_syn: f32,
    pub v_str: f32,
    pub v_log: f32,
    pub total: f32,
}

pub fn create_telemetry_channel() -> (TelemetrySender, TelemetryReceiver)

Key Bindings

Key	Dashboard/Tree View	Diff/Review View
q / Esc	Exit application	Close modal
↑ / k	Select previous	Scroll up
↓ / j	Select next	Scroll down
Enter	Expand/view details	Confirm action
Tab	Switch view	Switch pane
y	—	Approve change
n	—	Reject change

Source Code

crates/perspt-tui/src/agent_app.rs: Main application (17KB) crates/perspt-tui/src/chat_app.rs: Chat TUI (30KB) crates/perspt-tui/src/logs_viewer.rs: Logs viewer (35KB) crates/perspt-tui/src/dashboard.rs: Status dashboard (8KB) crates/perspt-tui/src/diff_viewer.rs: Diff display (20KB) crates/perspt-tui/src/review_modal.rs: Review UI (15KB) crates/perspt-tui/src/task_tree.rs: Task hierarchy (15KB) crates/perspt-tui/src/telemetry.rs: Telemetry events (4KB)
